A series Paper Bag Making Machine is used for the production of a paper bag with a twisted handle loop.
Transmission of the handle made by handle making unit, cut, stick, pressed, and then pre-cut, glue, auto handle stick in empty or printed roll paper. Then the main machine will glue the paper with the handle loop to the edge, paper bag tube forming, cut off, indentation, bottom glue, bottom forming, and sealing, bag conveying. the whole process is completed simultaneously at one time. Real realization of full automation production, can effectively save labor costs.
The whole machine adopts the servo-electric control system imported from Japan, which ensures the whole machine can run quickly and stably and effectively reduces the time of paper bag size adjustment. The finished bags produced are of high accuracy, strong stability, simple maintenance, and efficient production, which is the ideal equipment for major printing plants and paper bag manufacturers.
Full automatic square bottom paper bag machine is used for the production of a paper bag with a twisted handle loop. Transmission of the handle made by handle making unit, cut, stick, pressed, and then pre-cut, glue, auto handle stick in empty or printed roll paper. Then the main machine will glue the paper with the handle loop to the edge, paper bag tube forming, cut off, indentation, bottom glue, bottom forming, and sealing, bag conveying. the whole process is completed simultaneously at one time. Real realization of full automation production, can effectively save labor costs.
The whole machine adopts the servo-electric control system imported from Japan, which ensures the whole machine can run quickly and stably and effectively reduces the time of paper bag size adjustment. The finished bags produced are of high accuracy, strong stability, simple maintenance, and efficient production, which is the ideal equipment for major printing plants and paper bag manufacturers.
Handle Positioning - Handle Cutting - Handle Making
Side Gluing - Handle Pasting - Top Gluing - Top Cutting - Paper Roll Feeding
Tube Forming - Tube Cutting - Bottom Indentation
Tube
Bottom Opening - Bottom Gluing - Bottom Forming
1.3 TWISTED HANDLE PAPER BAGS SAMPLE
BAG SUITABLE:
Food bag: leisure food bag,baking bag,nuts fried bag,subsidiary food bag,fruit bag,baby products bag,etc.
Gift bag: candy ,tea wine etc.
Take away bag: shopping bag,cloth bag,taking away food bag
Model No. |
A220 |
A330 |
A400 |
A460 |
A560 |
Paper Diameter |
≤1500mm |
≤1500mm |
≤1500mm |
≤1500mm |
≤1500mm |
Core Inner Diameter |
φ76mm |
φ76mm |
φ76mm |
φ76mm |
φ76mm |
Paper Weight |
70-140gsm |
80-140gsm |
80-140gsm |
80-140gsm |
90-140gsm |
Paper Bag Width |
120-220mm(within handle) 80-220mm(without handle) |
200-330mm(with handle) 150-330mm(without handle) |
200-400mm(with handle) 150-400mm(without handle) |
240-460mm(with handle) 220-460mm(without handle) |
280-560mm(with handle) 280-560mm(without handle) |
Paper Tube Length |
190-350mm(within handle) 190-430mm(without handle) |
280-430mm(with handle) 280-530mm(without handle) |
280-550mm(with handle) 280-600mm(without handle) |
320-650mm(with handle) 320-770mm(without handle) |
320-650mm(with handle) 320-770mm(without handle) |
Bottom Width of Paper Bag |
50-120mm |
80-180mm |
90-200mm |
90-260mm |
90-260mm |
Paper Roll Width |
290/370-710mm |
490/590-1050mm |
510/610-1230mm |
650-690-1470mm |
770-1670mm |
Machine Speed |
150pcs/min |
150pcs/min |
150pcs/min |
130pcs/min |
100pcs/min |
Total Power |
32Kw |
32Kw |
34Kw |
34Kw |
34Kw |
Machine Weight |
13000KG |
16000KG |
18000KG |
21000KG |
22000KG |
Machine Dimensions(L*W*H) |
12*5*3.2m |
14*6*3.5m |
15*6*3.5m |
16*6*3.5m |
16*6*3.5m |
Model No. |
2HD |
3HD |
5HD |
6HD |
Handle Rope Height |
90-110 |
90-110 |
95-115 |
100-120 |
Handle Patch Width |
40-50 |
45-50 |
45-50 |
45-50 |
Handle Patch Length |
95 |
114 |
152 |
190 |
Handle Rope Diameter |
φ3-5mm |
φ4-6mm |
φ4-6mm |
φ4-6mm |
Diameter of Handle Patch Paper Roll |
φ1200mm |
φ1200mm |
φ1200mm |
φ1200mm |
Handle Patch Paper Roll Width |
80-100mm |
90-100mm |
90-100mm |
90-100mm |
Handle Patch Weight |
100-140g |
100-140g |
100-140g |
100-140g |
Handle Separation Distance |
47 |
57 |
76 |
95 |
Cutting/Painting - Japan Mazak/Okuma CNC Parts processing - Assembling - Testing - Loading - Installment and after sell serivce
Q: Are you manfacturer or trading company?

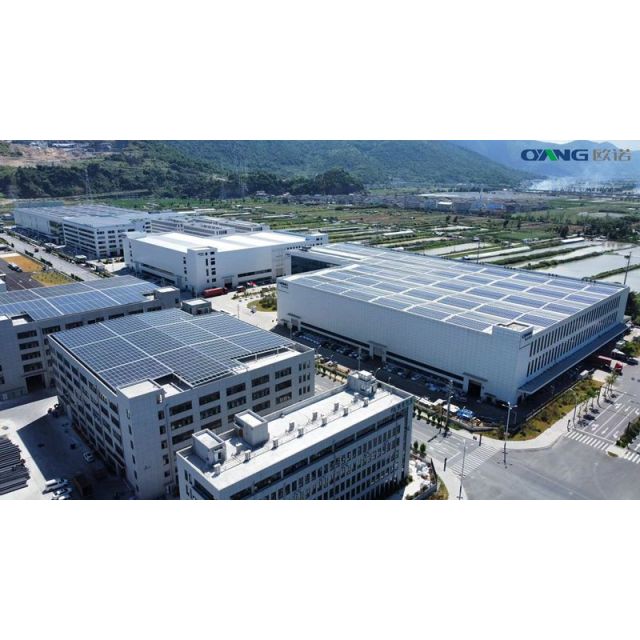

A: We are the manufacturer since 2006 year, Own factory 113,333 m^2, 400+ empolyee, located in Wenzhou City, Pingyang County, welcome to visit our factory!
A: This machine can make square bottom paper bag within online twisted handle, or without handle, bag size adjustable. Besides, machine accept customized function, 1 machine within both twisted handle & flat handle function, also accept to add online 1-2color flexo printing function.
Q: Have your machine been exported?
A: Yes, more than 120+ countries, has exported to USA, Canada, Italy, Spain, Ukraine, France, UK, Russia, Chile, Argentina, UAE, Saudi Arabia, Egypt, Vietnam, Indonisia, India, Turkey, Pakistan, Philippines, Malaysia and so on.
Q: How to do the after service?
A: 1year warranty. Manual book& Installment video for free. Supporting whatsapp/wechat group team service, 24hours photo/video online call guide. Support the technician door to door service.
