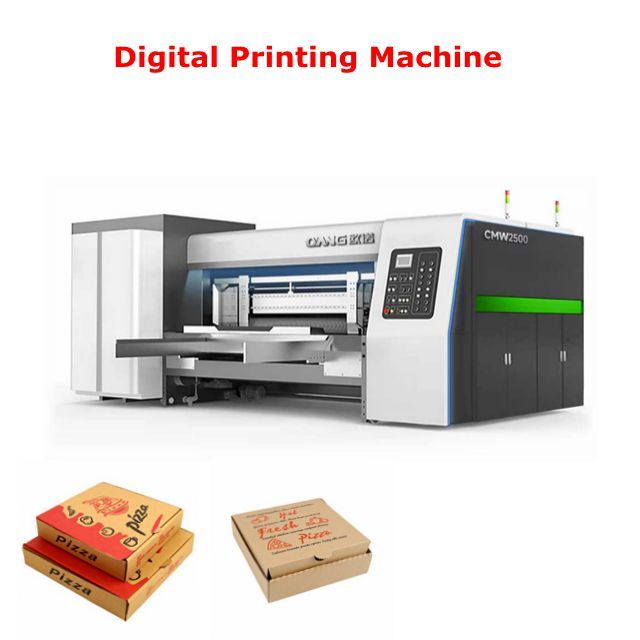

Digital Printing Machine for Corrugated Box, digital printing card, support short order, scattered order and multi-version order, personalized packaging design, help you win diverse business opportunities
Products with the same specifications can be produced at one time to improve production efficiency
Using a micro piezoelectric Epson nozzle, beautiful picture, more details
Humanized feeding side operation button
More convenient one-button function operation
Inkjet printing function
Printing Resolution | 360*600 DPI | 720*600 DPI | 720*1200 DPI |
8 Nozzle Print Speed(CMW250e8) | 900 ㎡/h | 450 ㎡/h | 230 ㎡/h |
13 Nozzle Print Speed(CMW250e13) |
1560 ㎡/h | 900 ㎡/h | 450 ㎡/h |
16 Nozzle Print Speed(CMW250e16) |
1930 ㎡/h | 900 ㎡/h | 500 ㎡/h |
Nozzle Type | EPSON Piezoelectric Nozzle(Original from Japan) |
|
|
No.of Nozzle | 8/13/16 pcs |
|
|
Nozzle Medium Distance | 2-4mm |
|
|
Max.Print Width | 2500*2000mm |
|
|
Nozzle Print Width | 8 Nozzles: 267mm | 13 Nozzles: 434mm | 16 Nozzles: 534mm |
Dry Speed | Dries instantly on corrugated paper |
|
|
Ink
Ink type | Special water-based ink for corrugated board |
Ink supply mode | Automatic ink supply |
Ink colour configuration | 4colour (CMYK) |
Media
Material Thickness | 1.5-20mm |
Feeding mode | Automatic feeding |
Material type | Corrugated board |
Working Enviroment
Relative Humidity | No condense 30-70%RH |
Environment Temperture | Indoor Temperature 17-35℃ |
Power | Loading: 15Kw; Working: 10Kw |
Power Supply | AC220V ; 50Hz |
>Digital Printing Card
One-stop digital color management
Effectively control the unity and stability of color output
>Grayscale print
Richer patterns
Personalized packaging design
>Support variable bar code and QR(custom software required)
Support short order, scattered order and multi-version order
Win diverse business opportunities
The ALL MEMS manufacturing process and the use of thin film piezoelectric elements enable a high precision jet hole arrangement(600npi/2 row), which enables the print head to be compact, fast, high quality and durable.
Epson's proprietary MEMS technology produces precision nozzles and ink paths that keep the droplets of ink close to a prefect circle and precisely positioned.
Epson's unique VSDT(Variable ink drop technology) allows you to freely control the size of the ink droplets sprayed, resulting in less grainy images, more detail, smoother color transitions, and high saturation.
Epson's unique VSDT(Variable ink drop technology) allows you to freely control the size of the ink droplets sprayed, resulting in less grainy images, more detail, smoother color transitions, and higher saturation.
Japan Mazak & Okuma equipment to ensure high precision parts
3D intelligent warehouse
