B series Square Bottom Paper Bag Making Machine is designed to manufacture paper bags without handle.
From paper roll feeding, tube forming, tube cutting, bottom forming and collection, complete automatically, effectively save labor costs. Widely use for food package bag, shopping bag, etc.
Japan Mazak and Okuma CNC equipment processing spare parts, high precision quality to ensure machine run fast and stable, machine multi-servo control, intellgent operate and bag size adjust eariser, also workable for thin thickness paper, equipped photoelectric detector can correct cutting length, so as to ensure cutting precision.
It is an ideal equipment for producing various sized paper bags.
Ounuo Sqaure Bottom Paper Bag Making Machine is used to produce environment-friendly paper bags, food paper bags, and shopping paper bags with paper as raw materials. This machine is to finish the paper bag by side gluing, tube forming, tube cutting, the bottom indenting, the bottom gluing, bottom forming, and finishing bag collection.The whole machine adopts a Japanese YASKAVA electronic control system, controlled by servo motor-produced paper bag products, high accuracy, strong stability, simple maintenance, production efficiency, is the most ideal equipment for printing plants and paper bag manufacturers.
Machine Accept Customized, Multi - function options:
* Patching & Punching Unit
* Die Cutting & Film Patching Unit
* Double Layers Unit
* Online Flexo Printing Unit (2/4color)
Paper Roll Feeding -> Side Gluing -> Tube Forming -> Bottom Cutting -> Bottom Indentation -> Bottom Opening -> Bottom Gluing -> Bottom Forming -> Collection
BAG SUITABLE:
Food bag: leisure food bag,baking bag,nuts fried bag,subsidiary food bag,fruit bag,baby products bag,etc.
Gift bag: candy ,tea wine etc.
Take away bag: shopping bag,cloth bag,taking away food bag
Model No.
B220
B330
B400
B460
B560
Paper Bag Length
190-430mm
280-530mm
280-600mm
320-770mm
320-770mm
Paper Bag Width
80-220mm
150-330mm
150-400mm
220-460mm
280-560mm
Paper Bag Bottom Width
50-120mm
70-180mm
90-200mm
90-260mm
90-260mm
Paper Thickness
45-150g/m^2
60-150g/m^2
70-150g/m^2
70-150g/m^2
80-150g/m^2
Machine Speed
280pcs/min
220pcs/min
200pcs/min
150pcs/min
150pcs/min
Paper Roll Width
290-710mm
470-1050mm
510-1230mm
650-1470mm
770-1670mm
Roll Paper Diameter
=<1500mm
=<1500mm
=<1500mm
=<1500mm
=<1500mm
Machine Power
380V 15Kw
380V 8Kw
380V 15.5Kw
380V 25Kw
380V 27Kw
Machine Weight
5600kg
8000kg
9000kg
12000kg
13000kg
Machine Size(L*W*H)
8.6*2.6*1.9m
9.5*2.6*1.9m
10.7*2.6*1.9m
12*2.6*2m
13*2.6*2m
W:paper bag width
C:paper bag tube length
L:paper bag height
H:paper bag bottom width
Q: Are you manfacturer or trading company?

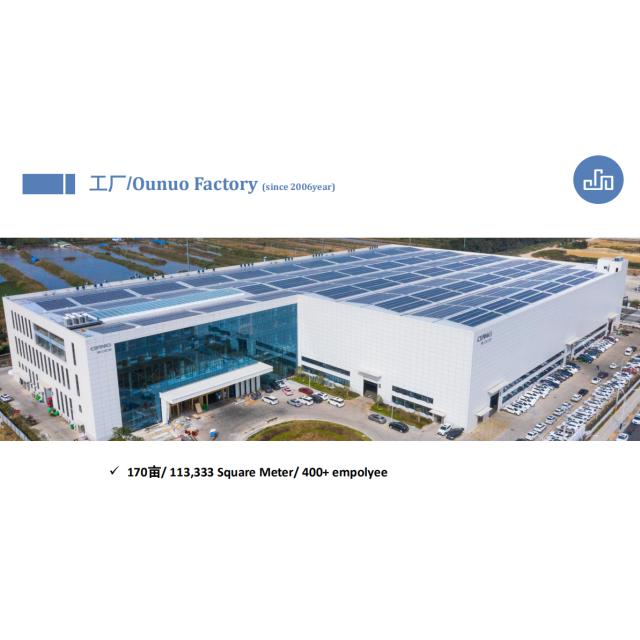

A: We are the manufacturer since 2006 year, Own factory 113,333 m^2, 400+ empolyee, located in Wenzhou City, Pingyang County, welcome to visit our factory!
A: This machine is mainly to make square bottom kraft paper bag, bag size adjustable. Besides, machine accept customized function, like 2layers, die cut punch, window, online printing, etc.
Q: Have your machine been exported?
A: Yes, more than 120+ countries, has exported to USA, Canada, Italy, Spain, Ukraine, France, UK, Russia, Chile, Argentina, UAE, Saudi Arabia, Egypt, Vietnam, Indonisia, India, Turkey, Pakistan, Philippines, Malaysia and so on.
Q: How to do the after service?
A: 1year warranty. Manual book& Installment video for free. Supporting whatsapp/wechat group team service, 24hours photo/video online call guide. Support the technician door to door service.
